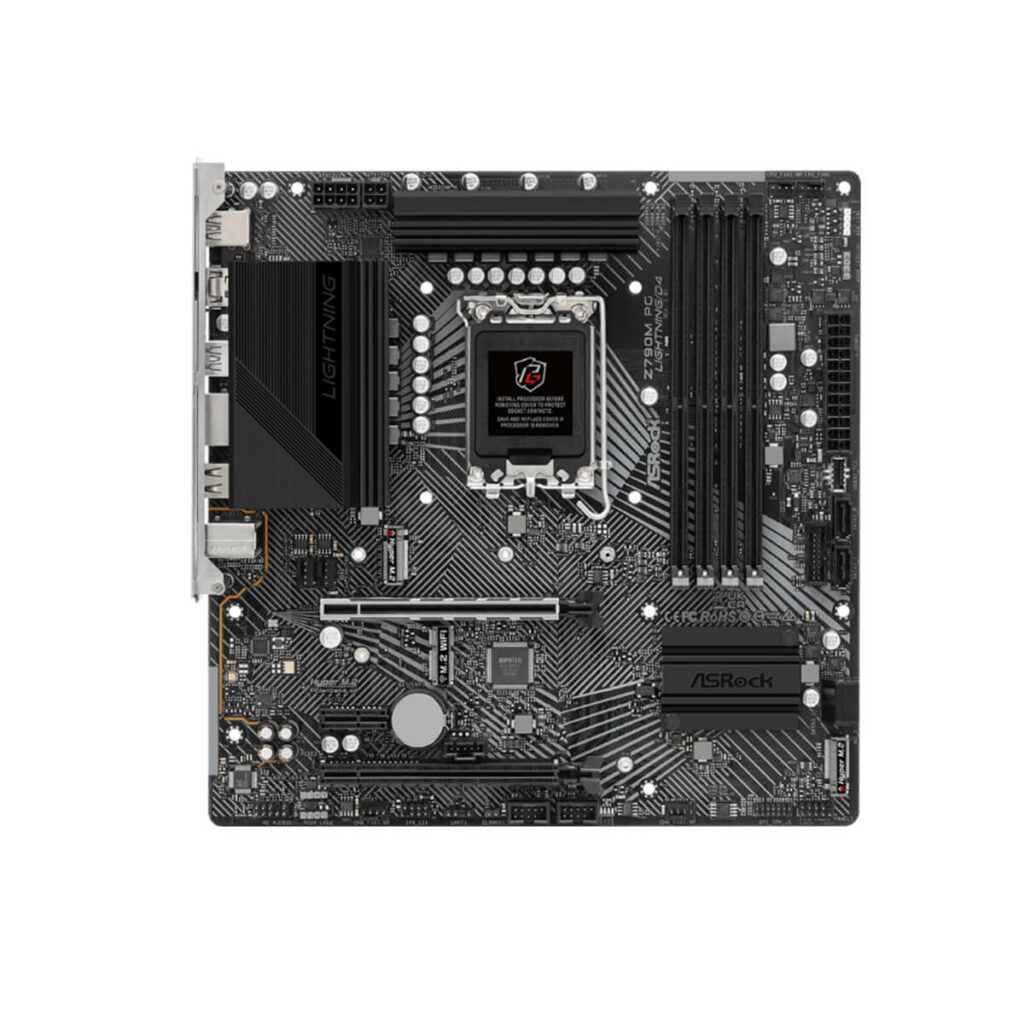

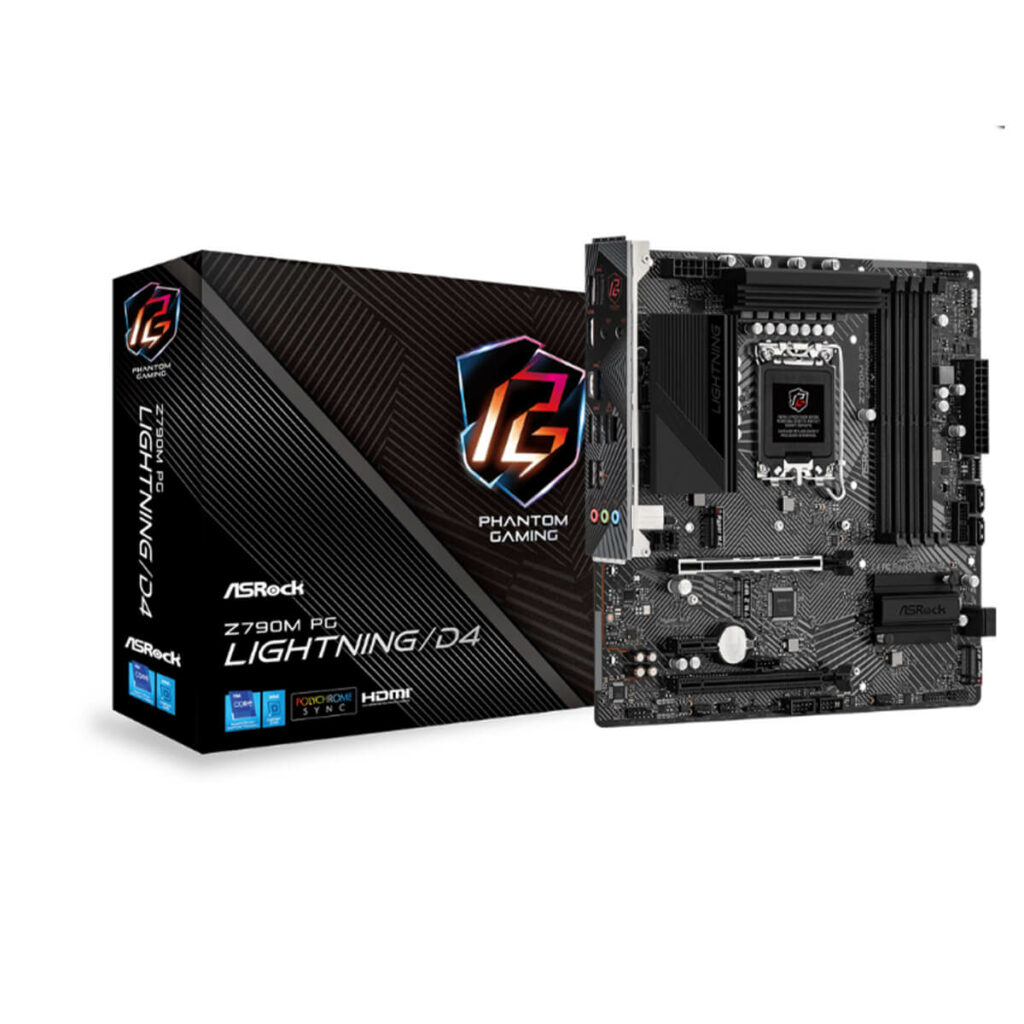

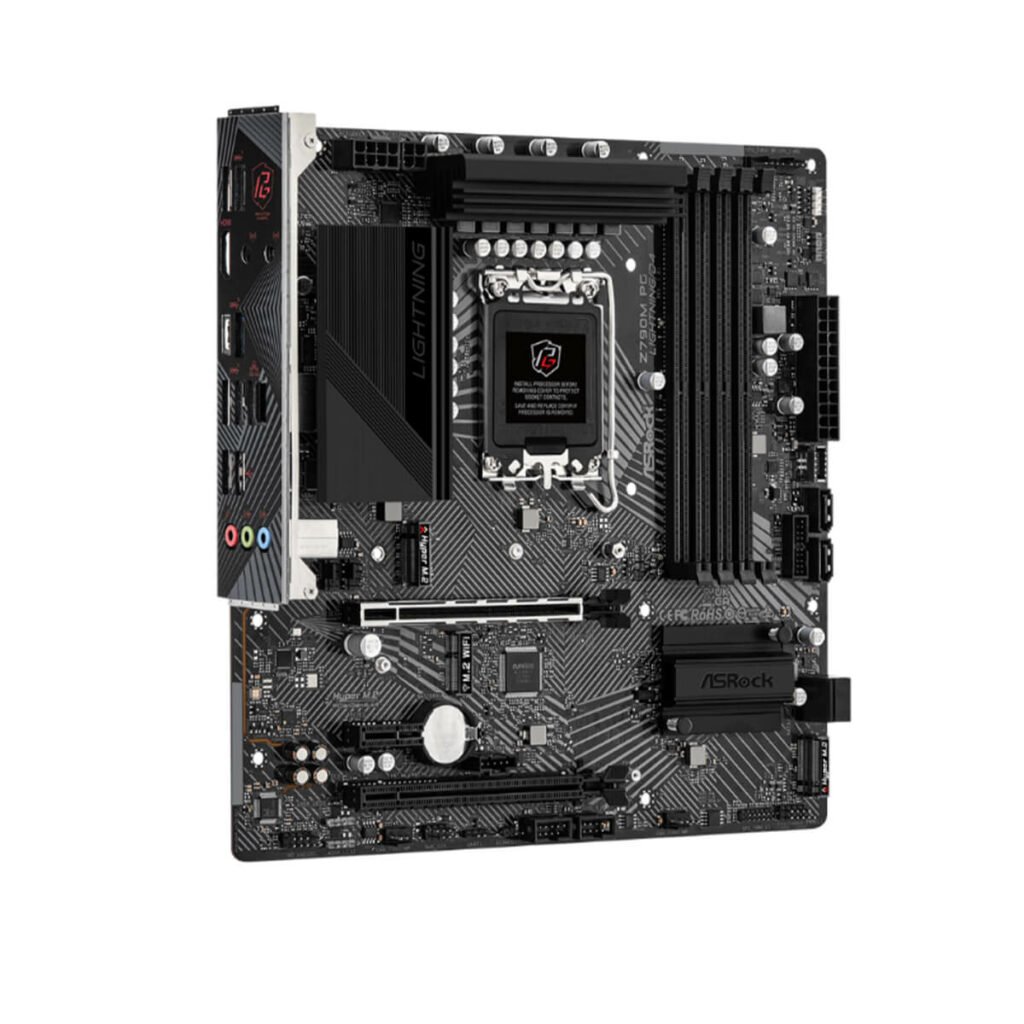

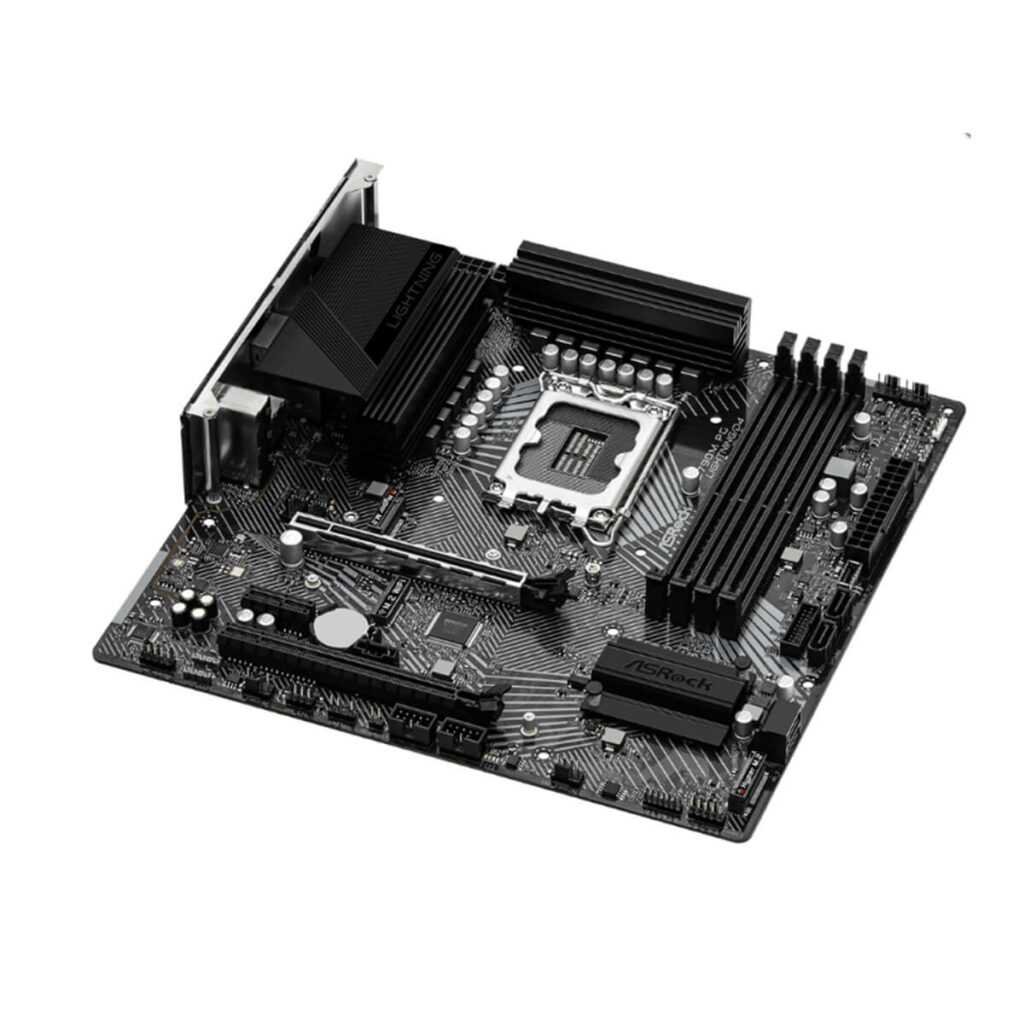

GIAO HÀNG TẬN NƠI.Mainboard ASRock Z790M PG Lightning/D4
THÔNG SỐ KỸ THUẬT
Unique Feature |
Rock-Solid Durability – 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
CPU |
– Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
Chipset |
Intel® Z790 |
Memory |
– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB* – Supports Intel® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. |
BIOS |
128Mb AMI UEFI Legal BIOS with GUI support |
Graphics |
– Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60H |
Audio |
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
LAN |
– Gigabit LAN 10/100/1000 Mb/s – Intel® I219V |
Slots |
CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* – 1 x PCIe 3.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module– Supports AMD CrossFire™ |
Storage |
CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors |
RAID |
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
USB |
– 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
Connector |
– 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |

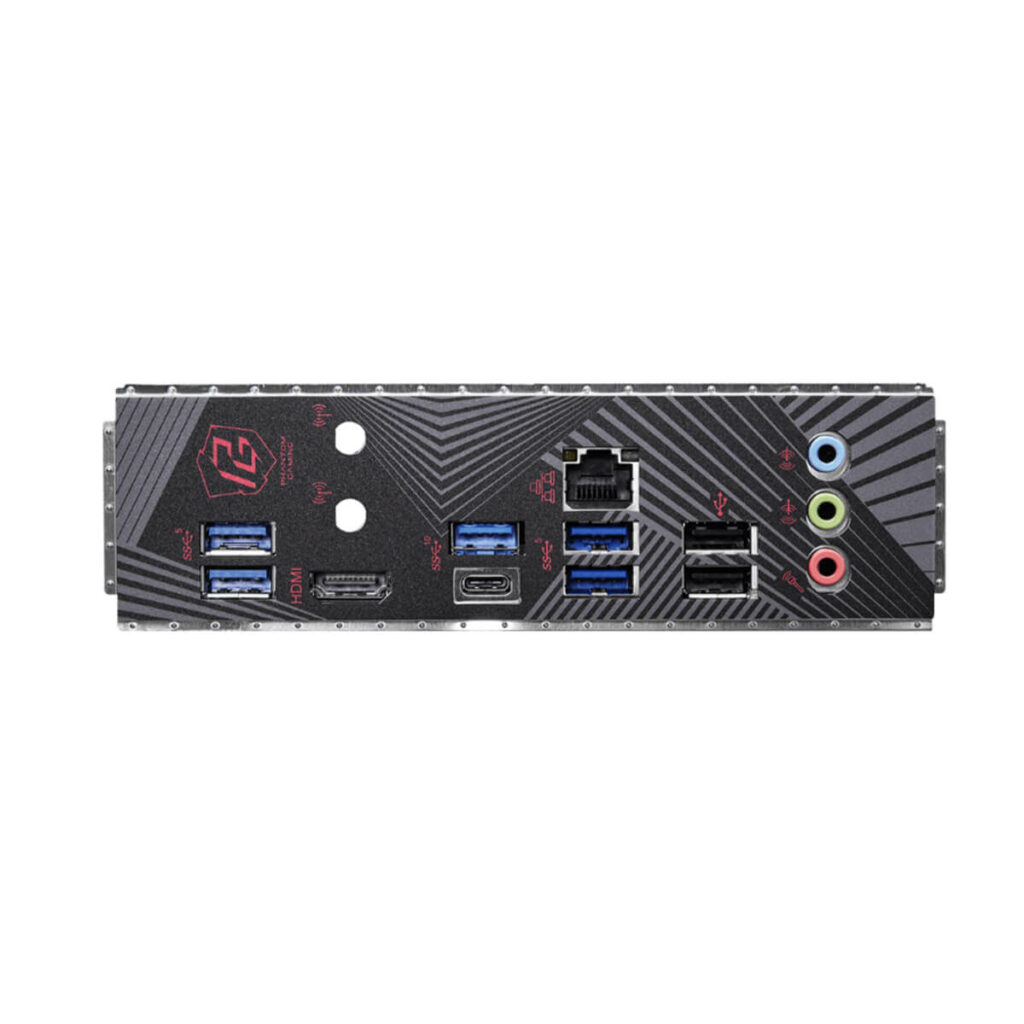

Rear Panel I/O |
– 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI |
Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
Accessories |
– 1 x User Manual – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets |
Form Factor |
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS |
– Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications |
– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
